FOAM PROCESSING

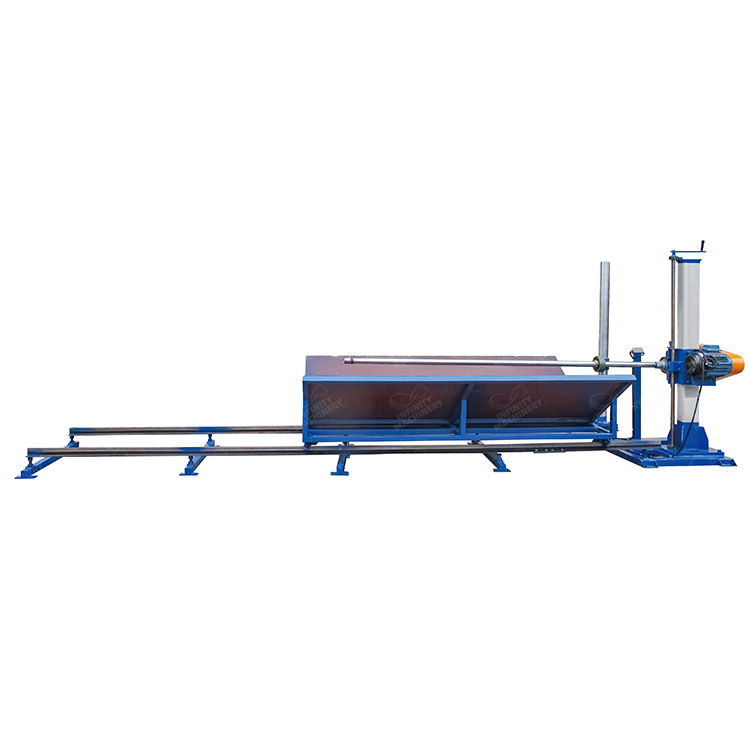

IF-Z01 Foam Boring Machine
Precision Drilling for Round Foam Production
The missing link between foam peeling and finished products
Φ45mm Precision 230 r/min 1.5kW Low Energy
You've invested in a foam peeling machine. The round foam blocks are cutting into perfect sheets. But there's one problem — the center of every block is solid. No ventilation channel means uneven peeling, wasted material, and products that don't meet spec. The IF-Z01 Foam Boring Machine solves this exact issue.
Why Round Foam Needs a Center Hole
When you peel a round foam block without a center bore, three things go wrong:
- Uneven tension — the outer layers peel thinner than the inner layers because the core resists rotation
- Heat buildup — friction at the center creates hot spots that degrade foam quality
- Material waste — the center core gets discarded instead of being converted to usable product
The IF-Z01 drills a clean Φ45mm channel through the center before peeling starts. This simple step eliminates all three problems at once.
How the IF-Z01 Works
The machine is designed specifically for foam peeling production lines. It positions the round foam block horizontally, then drills a precision bore through the entire length at 230 r/min.
| Specification |
Value |
| Process Foam Size |
Φ2000 × W2150 mm |
| Drilling Type |
Horizontal |
| Drilling Diameter |
Φ45 mm |
| Drill Speed |
230 r/min |
| Total Power |
1.5 kW |
| Machine Size |
L5800 × W1400 × H1800 mm |
At just 1.5 kW, this is one of the most energy-efficient machines in any foam factory. The horizontal design means the foam block loads and unloads without lifting equipment.
Production Line Integration
The IF-Z01 sits between the carrousel cutting station and the IF-FYQ1 peeling machine. Here's the typical workflow:
- Round foam block arrives from the foaming machine
- IF-Z01 drills the center bore — 2-3 minutes per block
- Block moves to the IF-FYQ1 peeling machine
- Peeling produces uniform sheets from outer to inner layers
- Center bore waste is recycled through the IF-FFS3 crusher
What You Gain
+12%
Material yield from uniform peeling
-8%
Energy cost from reduced friction
Φ45mm
Precision bore for consistent results
Foam Boring Machine — precision Φ45mm center drilling for round foam blocks
Drill Speed: 230 r/min
Power: 1.5 kW
Learn More
Foam Peeling Machine — continuous rotary cutting for round foam up to Φ2000mm
Cutting Thickness: 1-30 mm
Precision: ±0.1 mm
Learn More
Ready to Complete Your Foam Peeling Line?
Add the IF-Z01 boring machine to maximize yield from your IF-FYQ1 peeler.
